LASER CUTTING MACHINES and LASER WELDING MACHINES FOR METAL PLATE, SHEET AND TUBE

FIBER LASER CUTTING - FIBER LASER WELDING - OXY - PLASMA

Fiber Laser Cutting

Our budget-oriented high quality machine replaces conventional manufacturing techniques and offers the ideal entry into tube and sheet processing.

To our FIBER LASERS

FIBERSAW® for Tube

Fastest Round Tube and pipe sawing machine in the world! Lowest cost per cut available on the market.
With optional de-dust function
No tooling cost
To our Fibersaw

Plasma Oxy cutting

Don't hesitate and discover the large selection of oxy - Plasma cutting machines packed full of options and strongly affordable

To our PLasma-Oxy

Portable Plasma cutting

Don't hesitate and discover the large selection of portable oxy - Plasma cutting machines packed full of options and strongly affordable

To our PLasma-Oxy



Fiber laser Welding

Lasermach WOBBLE:
Handheld fiber laser welding machine
Hand Welding only with light
No wire cost
To our WOBBLE

Laser SEAM Tracking

Track any seam by intelligent laser
Always correct welded seams!.
ZERO Mistakes.
Robot follows seam visual
To our Tracker


Lasermach® offers an exceptional choice of CNC cutting machines and technologies for processing of metal plate, sheet and tube materials.

FIBERSAW®: HIGH SPEED FIBER LASER SAWING MACHINE

Fastest round TUBE and pipe sawing machine in the world!

NO Sawblade costs

Lowest cost per cut available on the market.

Special for round tubes

No Tooling cost

ZERO SET-UP TIME

CLEAN INTERIOR (patented technology)



More info on our Fiber Lasersaw Tube Cutting Machines

Fiber laser

Laser cutting and laser drilling

Due to their excellent beam quality, fiber lasers are the first choice for diverse applications in the field of laser precision cutting and welding, as well as in micro-materials processing and laser marking.

Fiber lasers are compact and rugged, don't go out of alignment, and easily dissipate thermal energy.

They come in many forms, sharing technology with other type of lasers but providing their own unique advantages.

Fiber lasers: The state of the art



More info on our Fiber Laser Cutting Machines

Flame cutting

Flame cutting is a standard process primarily used for cutting mild steel.

In flame cutting, oxygen is used as the cutting gas. The oxygen is blown into the kerf at pressures of up to 6 bar. There, the heated metal reacts with the oxygen: it begins to burn and oxidizes. The chemical reaction releases large amounts of energy - up to five times the laser energy - and assists the laser beam. Flame cutting makes it possible to cut at high speeds and handle jobs involving thick plates such as mild steel with thicknesses in excess of 30 millimeters.

More info on our Oxy-fuel flame cutting Machines

Plasma cutting

Plasma cutting is a standard process primarily used for precision cutting of mild and hard steel steel and iron.

Plasma cutting (plasma arc cutting) is a melting process in which a jet of ionised gas at temperatures above 20,000°C is used to melt and expel material from the cut. During the process, an electric arc is struck between an electrode (cathode) and the workpiece (anode). The electrode is recessed in a water- or air-cooled gas nozzle which constricts the arc causing the narrow, high temperature, high velocity plasma jet to form.

When the plasma jet hits the workpiece, recombination takes place and the gas reverts to its normal state, emitting intense heat as it does so. This heat melts the metal and the gas flow ejects it from the cut. Plasma gases are usually argon, argon/hydrogen or nitrogen. These inert gases can be replaced by air but this requires a special electrode of hafnium or zirconium. Use of compressed air makes this variant of the plasma process highly competitive with the oxy-fuel process for cutting carbon-manganese and stainless steels up to 20mm thick. Inert gases are preferred for high quality cuts in reactive alloys.

More info on our plasma cutting machines

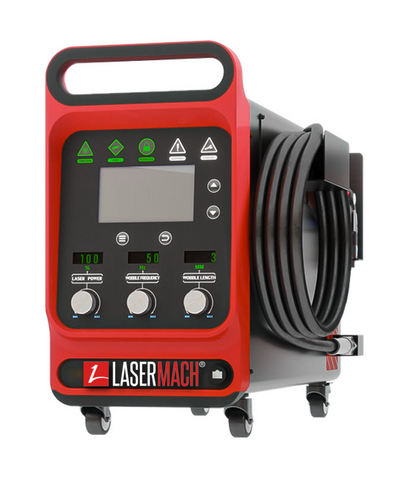

Lasermach WOBBLE

Handheld fiber laser welding machine

FAST, economical and safe hand welding with fiber laser beam

A Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding.
Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.

More info on our WOBBLE LASER Welding Machines

Intelligent laser seam tracking system for welding

Welding seam tracking system by intelligent laser

Our Intelligent laser welding seam tracking system is composed by laser sensor and control host.

Laser sensor is used for welding seam active acquisition and control host is used for welding seam real time processing meanwhile keep communication with robot.

It has locating and tracking functions also can satisfy the need of intelligent welding requirement.



More info on our laser seam tracking system by intelligent laser

Laser mould repair by laser welding

MOLDMAX 2 - laserwelding for moulds

Lasermach provides an an intelligent solution to process on parts regardless of the geometry. All 3-axes are integrated into the welding head. The laser beam is delivered to the welding head by fiber optic cable. The pivoting welding head allows easy positioning and...

Go to mould / mold repair machines
